Visio.M – winner of the 2014 Electric Vehicle Competition in Germany!

visio.m

We are pleased to announce that the Visio.M was winner of the 2014 Electric Vehicle Competition in Germany!

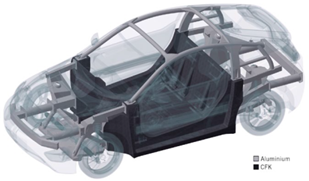

Visio.M is the state-of-art Electric Vehicle in Europe with an Hybrid-Body-in -White.

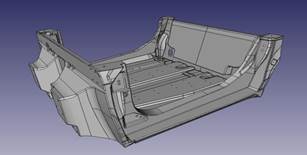

Formtech Composites developed the Monocoque concept in conjunction wtih IAV, before going on to manufacture the solution.

Design philosophy was driven by:

  • simplicity,
  • modularity,
  • maximising processing options &
  • reducing costs

One piece outer

  • The monocoque is built “from the outside -> in”
  • Pre-preg manufacturing with concept of moving towards stamped pre-preg
  • Reduction of adhesive joints to reduce risk on FEA modelling
  • The mould doubles up as the drill (no 5 axis final machining) and bonding jig

Inner skins

  • Potential examples of different manufacturing processing techniques
  • Pre-preg for initial prototypes -> move towards hybrid materials, RTM and other processing alternatives using the same moulds
